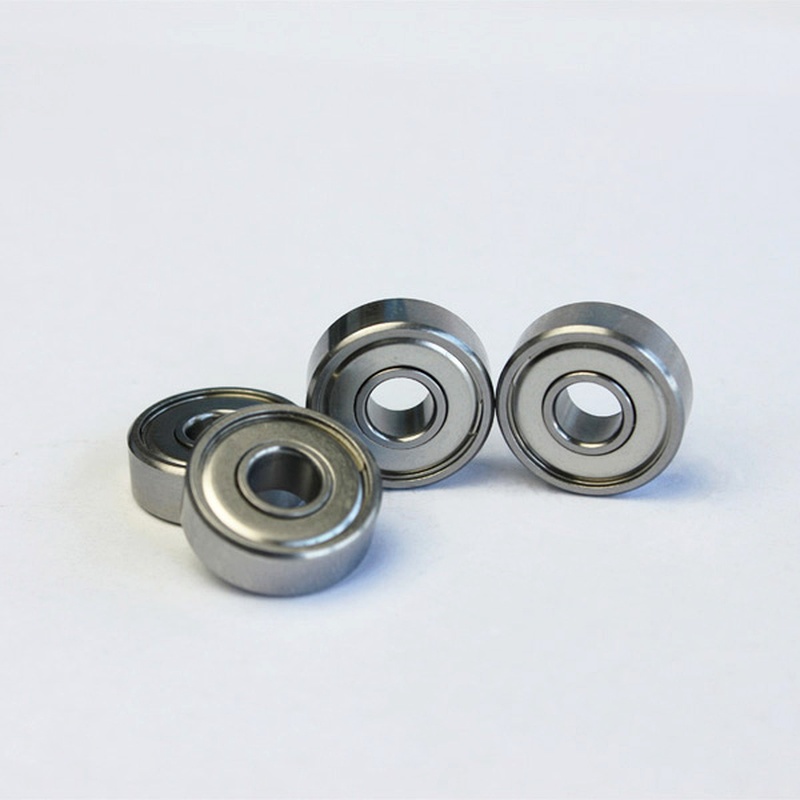

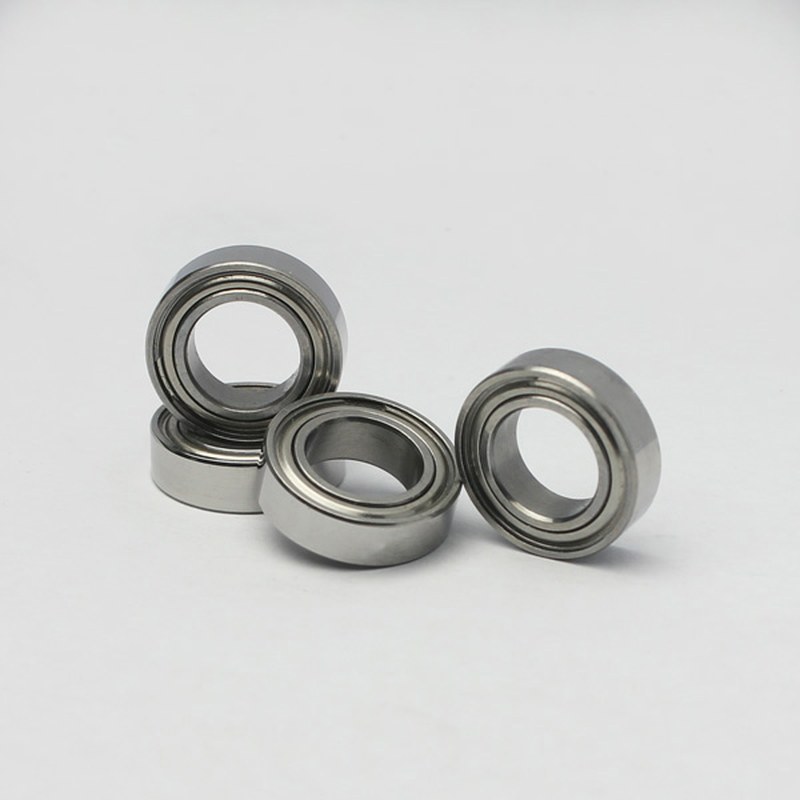

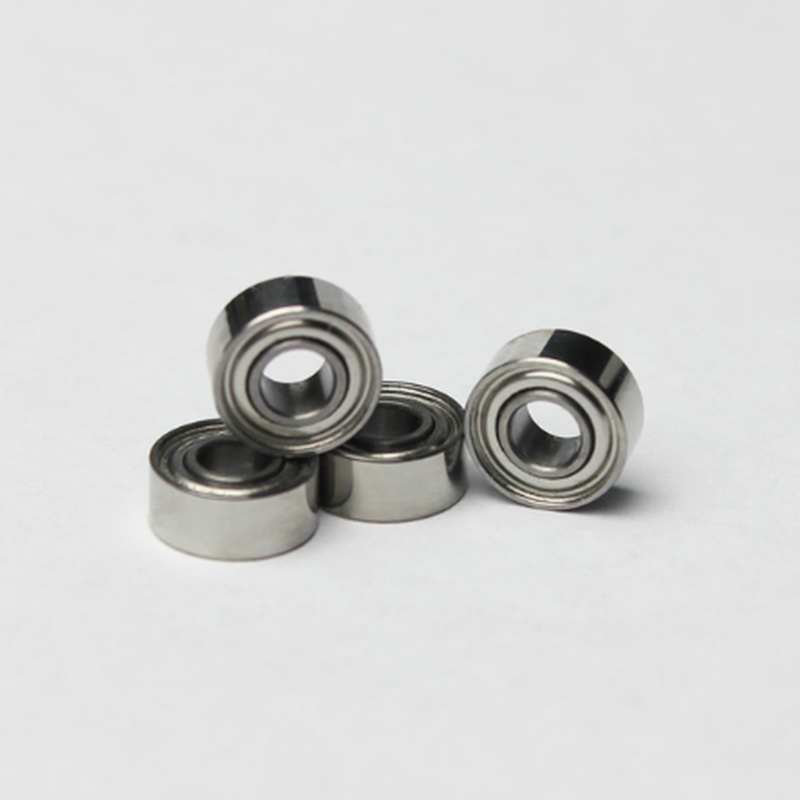

内径1–30mm全规格 · ABEC-3~9精度可选 · 轴承钢/不锈钢/陶瓷/塑料多种材质 · 服务AI算力、半导体设备、医疗器械、机器人
ID 1–30mm full series · ABEC-3 to ABEC-9 · Steel / stainless / ceramic / plastic · AI, semiconductor, medical, robotics
内径 1–30mm 全规格 · 精度最高 ABEC-9 / P2 · 专为半导体、医疗影像、机器人等高端装备打造
ID 1–30mm · up to ABEC-9 / P2 · engineered for semiconductor, medical imaging and robotics
本公司的产品结构合理，性能稳定，品质优良。多种标准及非标准产品可成功替代进口产品，为用户极大降低成本；高精密型号更专为半导体晶圆传输、医疗影像、机器人谐波减速器、伺服电机等场景设计，精度可达 ABEC-9/P2，并具备超低摩擦力矩与高转速稳定性。
Reasonable structure, stable performance, excellent quality. Many standard & non-standard products replace imported equivalents, greatly reducing cost; high-precision models are designed for semiconductor wafer handling, medical imaging, robot harmonic reducers and servo motors, up to ABEC-9/P2, with ultra-low friction torque and high-speed stability.
| 等级 | Grade | ABEC / ISO | 典型应用 | Applications |
|---|---|---|---|---|
| 标准 | Standard | ABEC-3 / P6 | 通用电机、电动工具 | General motors, power tools |
| 精密 | Precision | ABEC-5 / P5 | 机床主轴、流量计 | Machine-tool spindles, flow meters |
| 高精密 | High Precision | ABEC-7 / P4 | 半导体、医疗影像 | Semiconductor, medical imaging |
| 超精密 | Ultra-Precision | ABEC-9 / P2 | 晶圆传输、手术机器人 | Wafer handling, surgical robots |

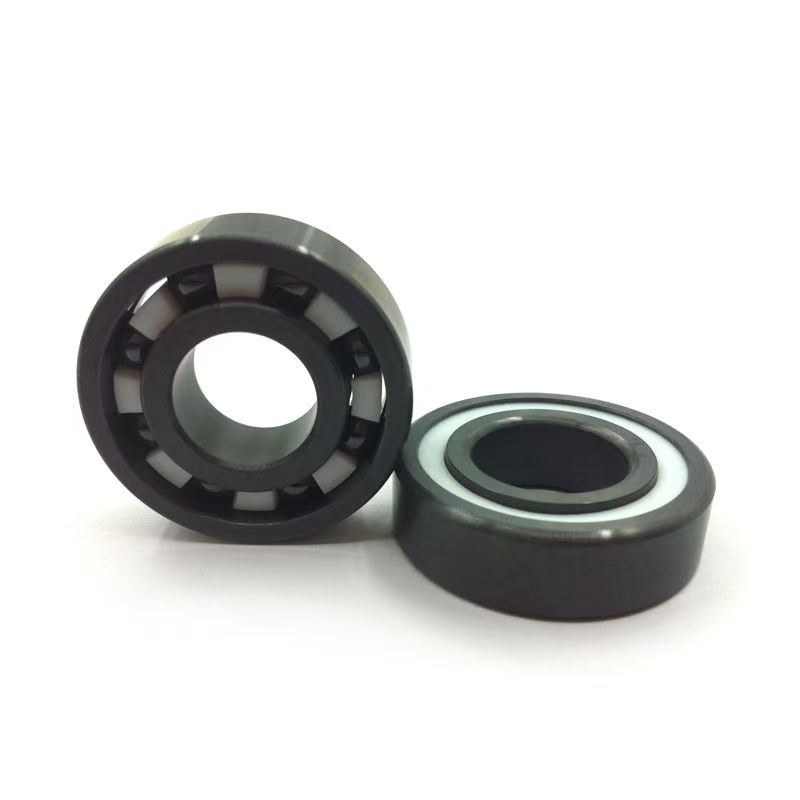

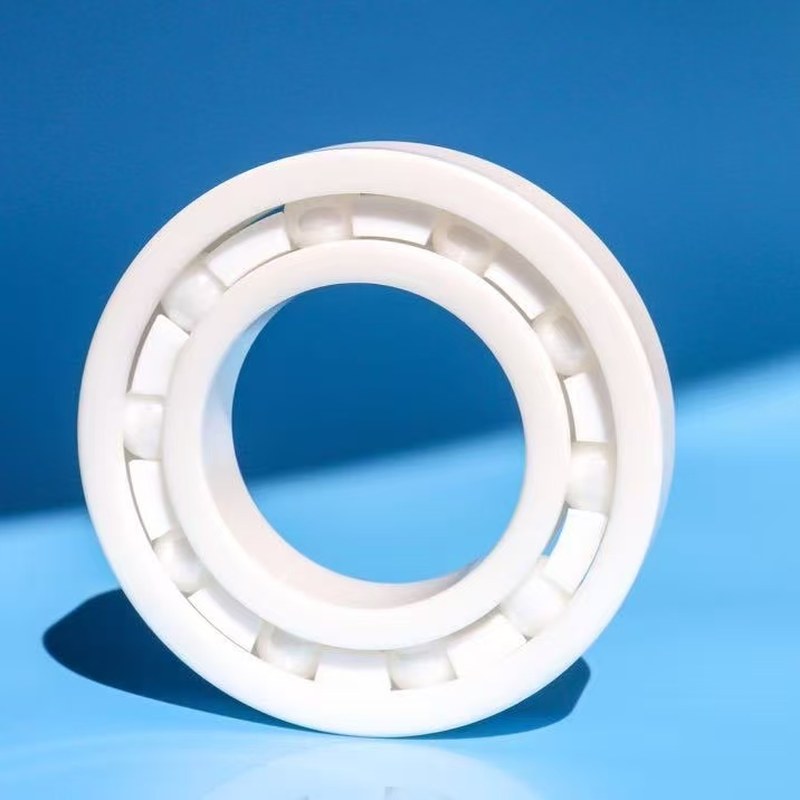

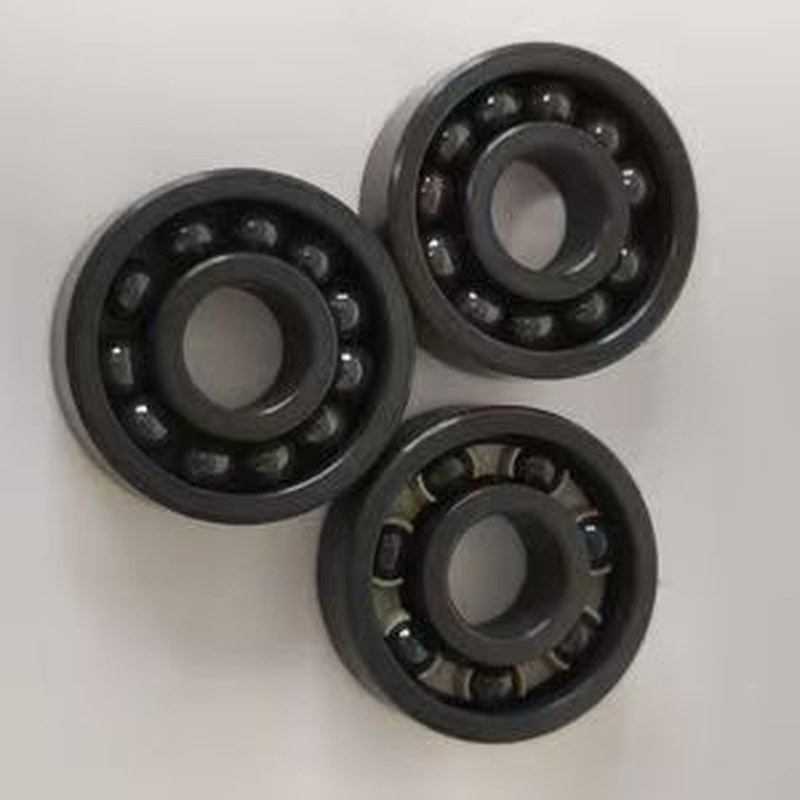

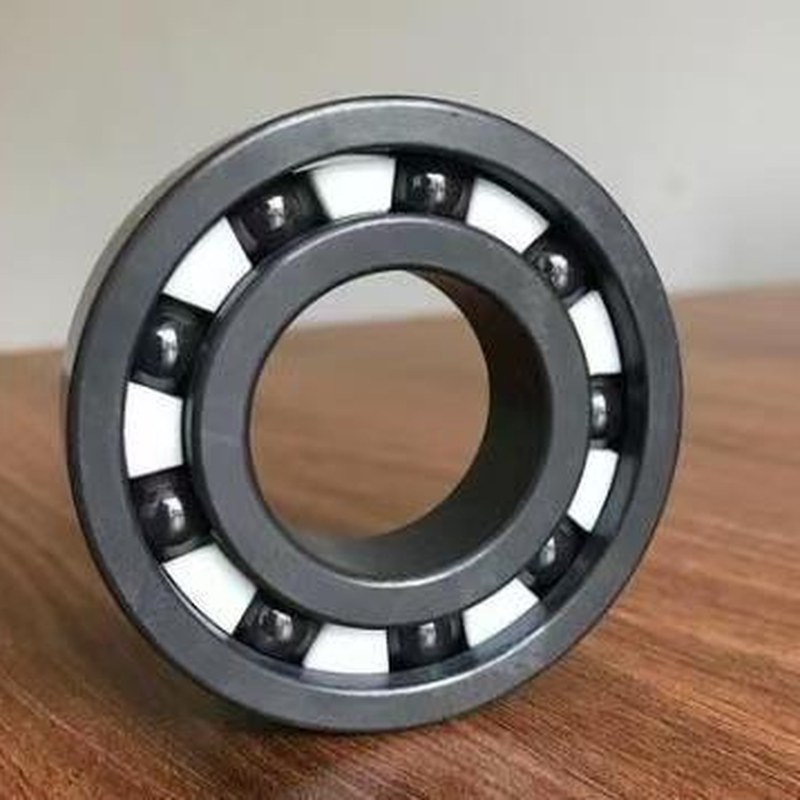

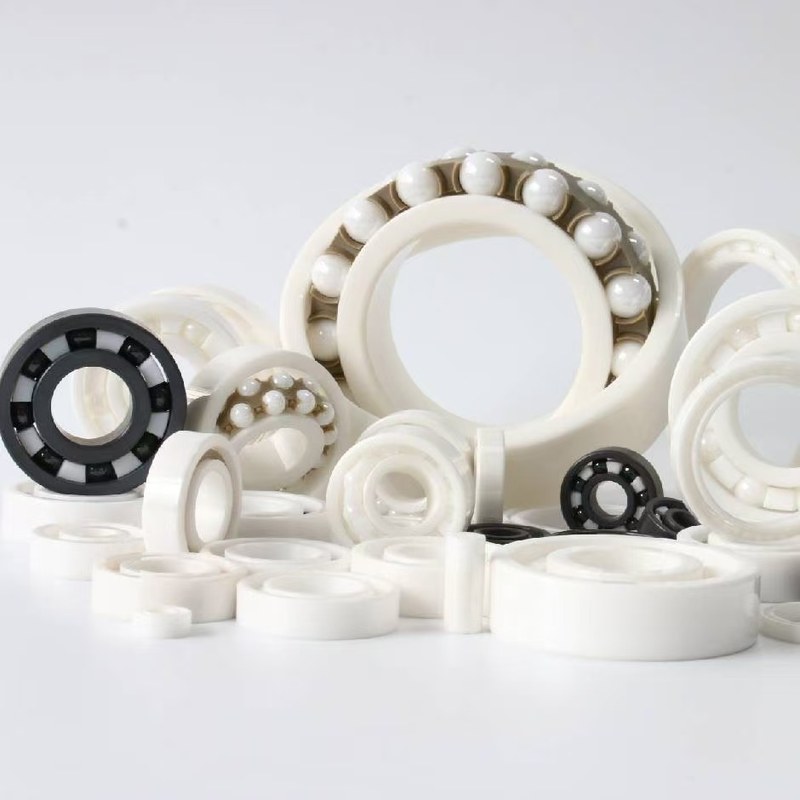

涵盖混合陶瓷（钢套圈 + 陶瓷球）与全陶瓷（陶瓷套圈 + 陶瓷球）· 材质 Si3N4 / ZrO2
Hybrid (steel rings + ceramic balls) and full ceramic (ceramic rings + balls) · Si3N4 / ZrO2
球体部分可选择钢球、陶瓷球、塑料球、玻璃球等；保持架可选冠型、浪型、满球无保持架，材质可选 PEEK、TORLON、PHENOLIC 等高端尼龙、钢保、陶瓷保。全陶瓷耐高温、耐腐蚀、无磁、电绝缘，是半导体设备、医疗 MRI、食品机械、化工设备的理想方案。
Balls: steel, ceramic, plastic, glass. Cages: crown, ribbon, full-complement, in PEEK / TORLON / PHENOLIC nylon, steel or ceramic. Full ceramic is heat & corrosion resistant, non-magnetic and insulating — ideal for semiconductor, MRI, food and chemical equipment.
| 材质 | Material | 特性 | Feature | 典型应用 | Applications |
|---|---|---|---|---|---|
| 氮化硅 Si3N4 | Si3N4 | 高硬度、耐高温、轻量化 | Hard, heat-resistant, lightweight | 高速主轴、真空泵 | High-speed spindles, vacuum pumps |
| 氧化锆 ZrO2 | ZrO2 | 耐腐蚀、绝缘、成本适中 | Corrosion-proof, insulating, mid-cost | 化工、医疗设备 | Chemical, medical equipment |
| 碳化硅 SiC | SiC | 超高硬度、耐磨 | Ultra-hard, wear-resistant | 极端工况 | Extreme conditions |

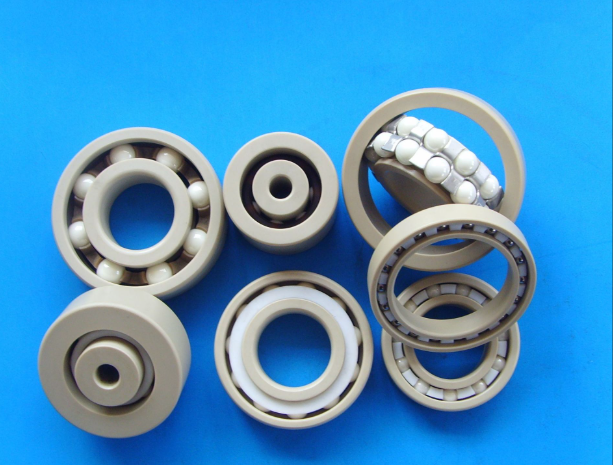

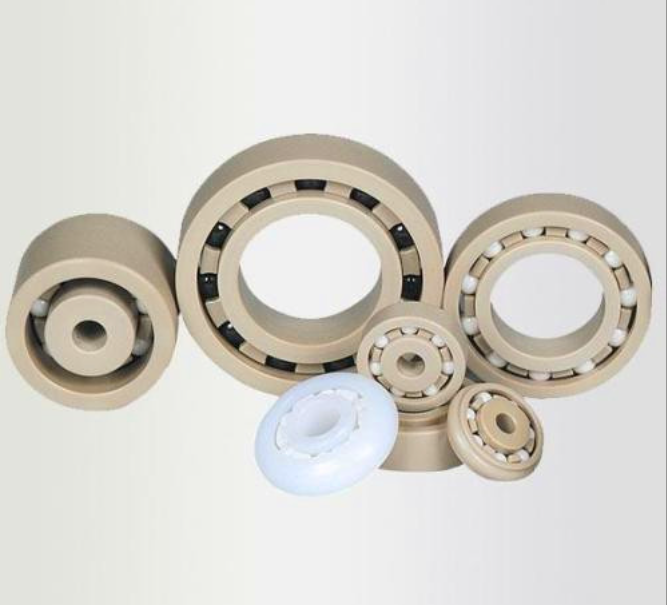

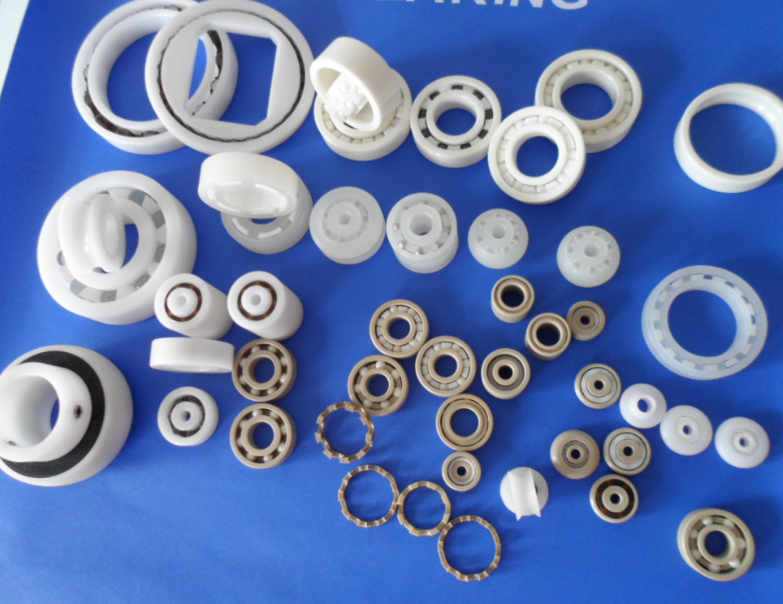

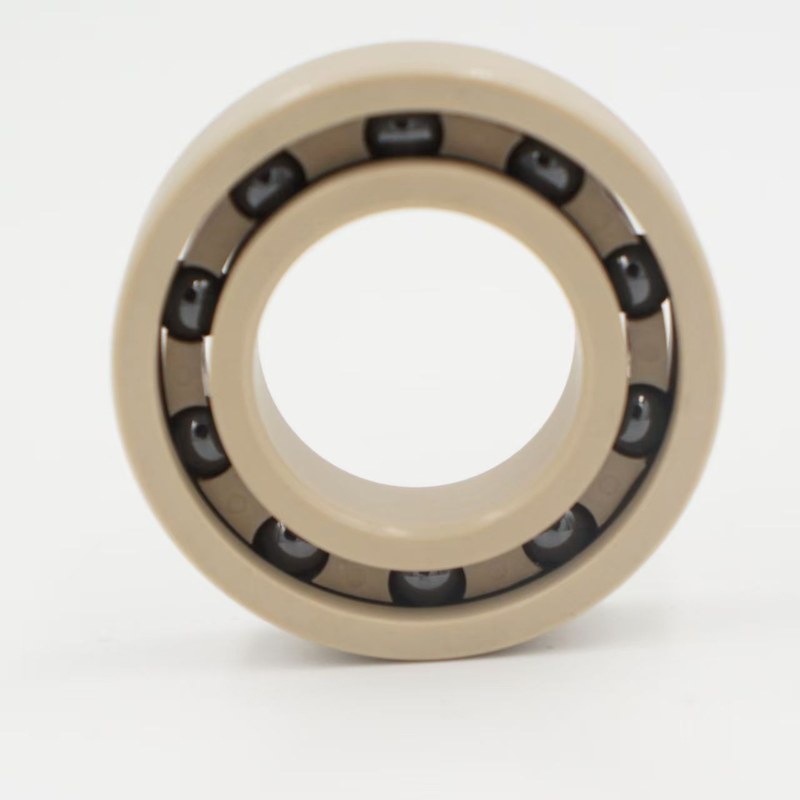

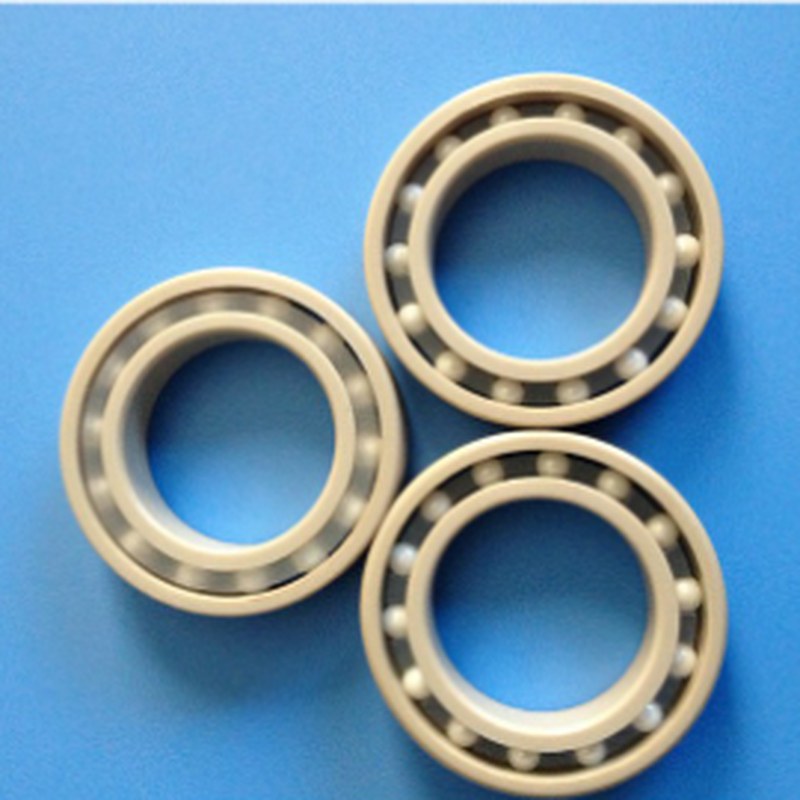

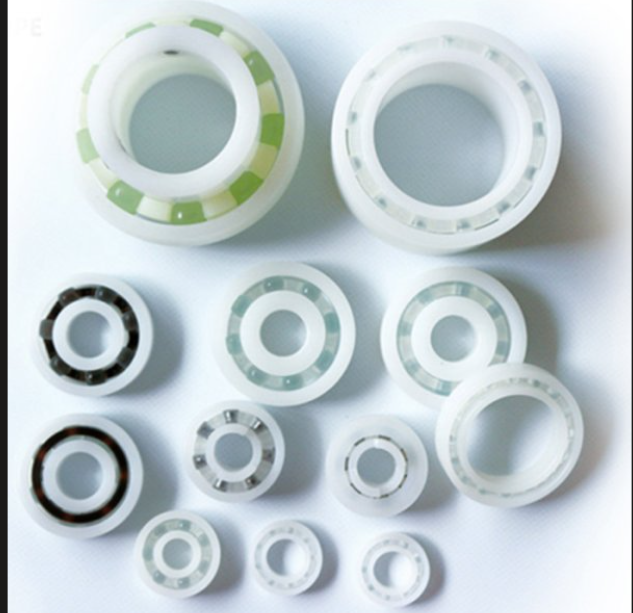

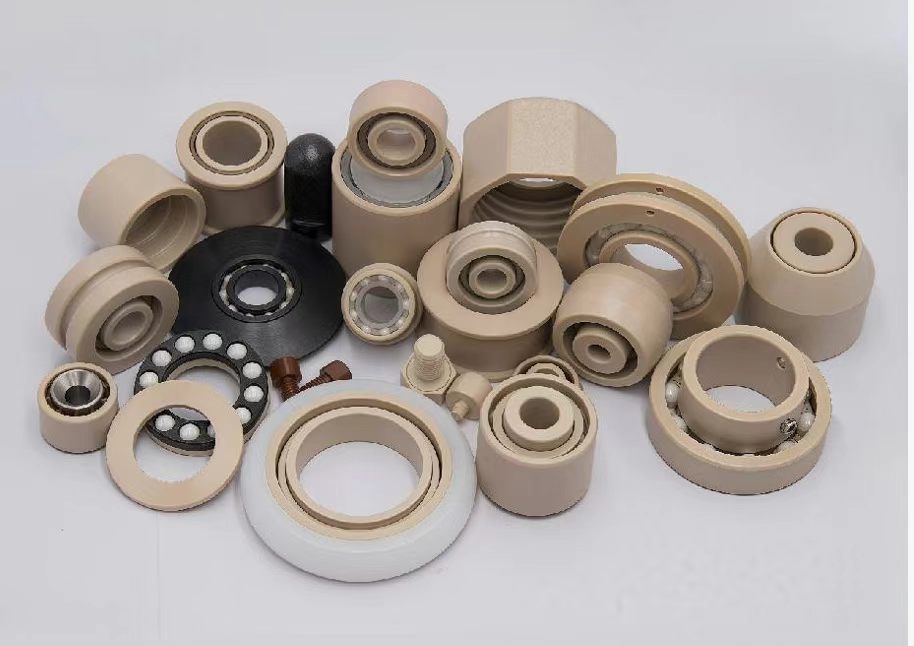

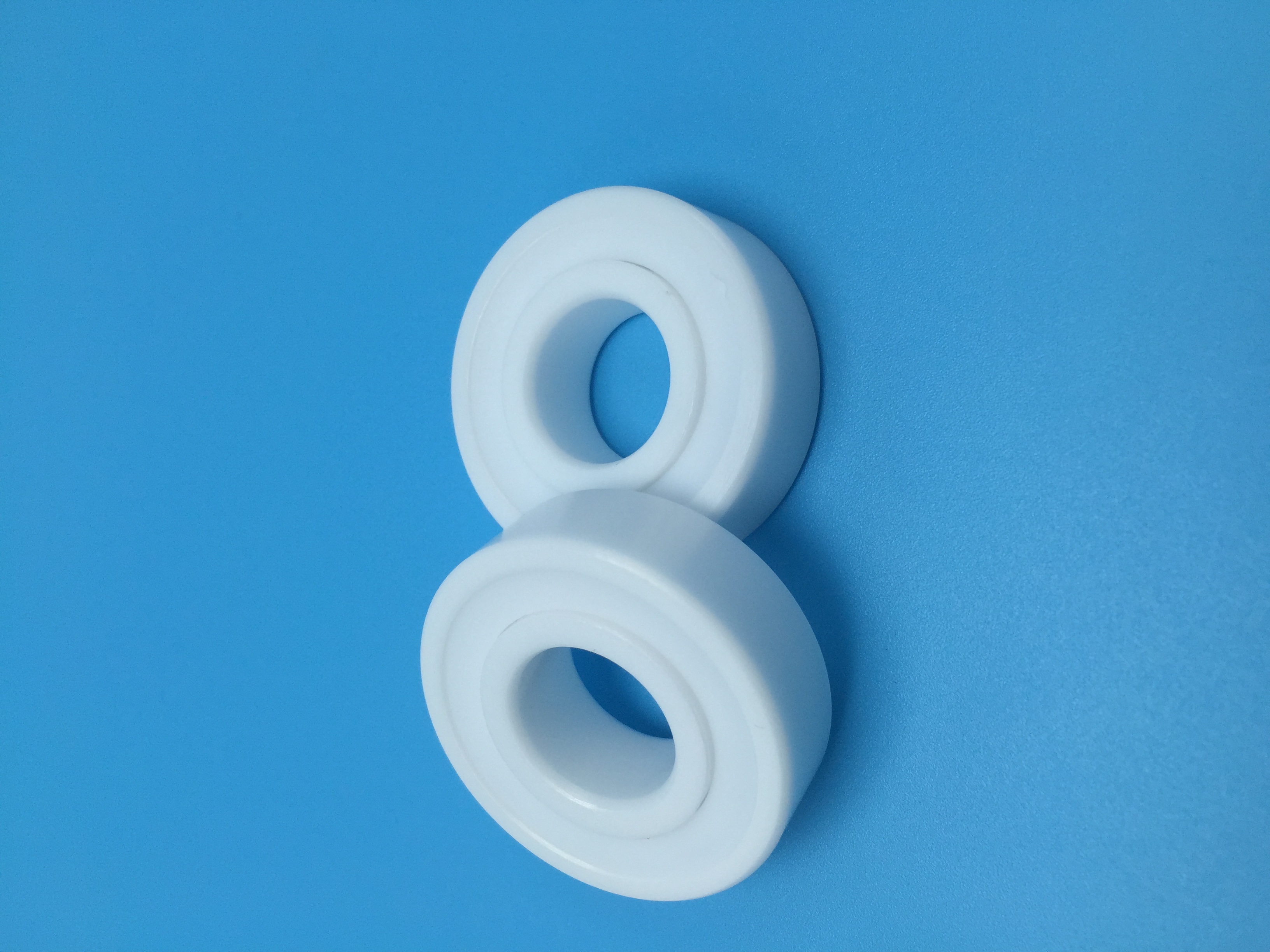

PEEK / POM / PTFE / 尼龙 · 耐腐蚀、免润滑、轻量化、无磁性
PEEK / POM / PTFE / Nylon · Corrosion-proof, self-lubricating, lightweight, non-magnetic

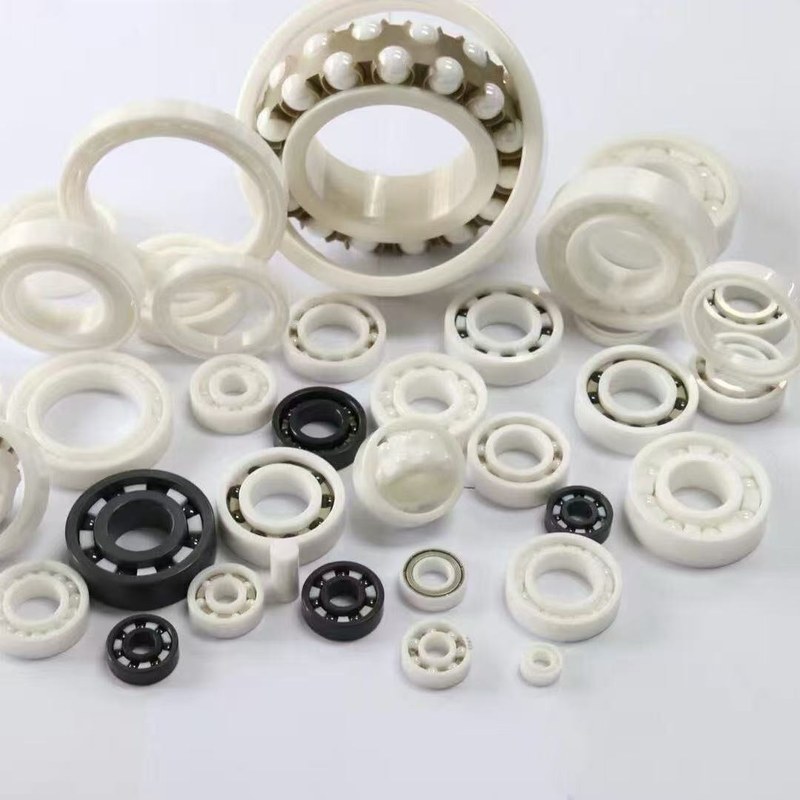

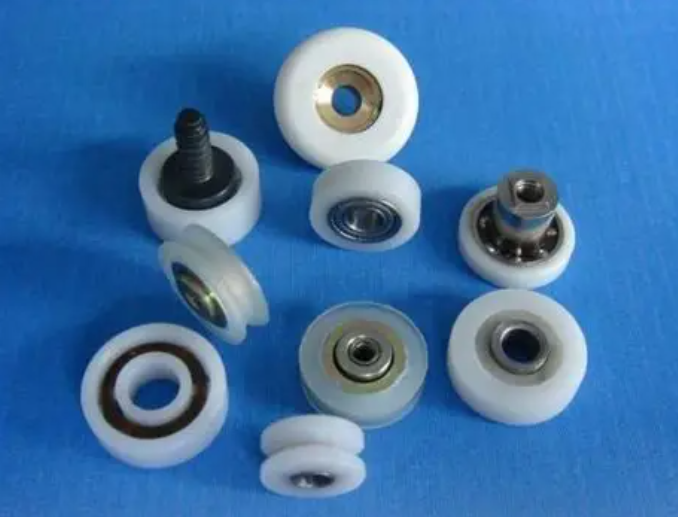

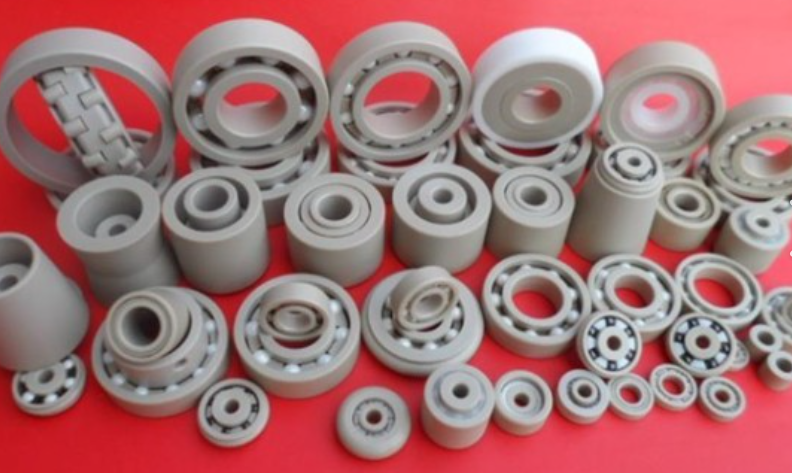

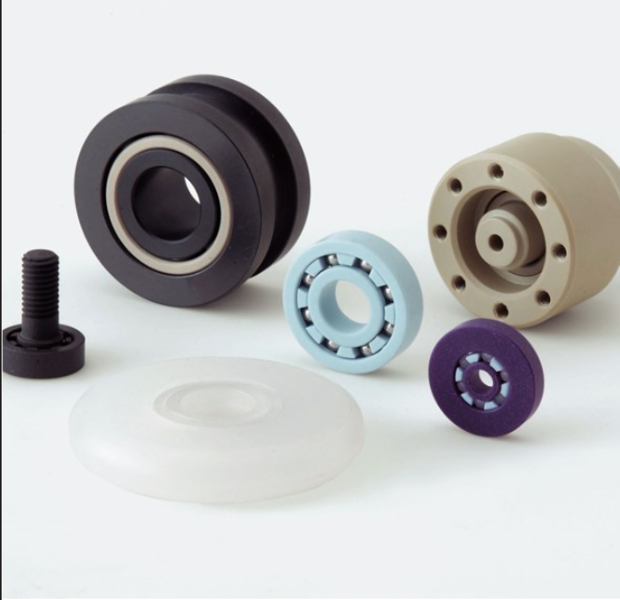

高端塑料轴承是我公司为强腐蚀、免润滑、轻量化及无磁场景开发的特种轴承解决方案。材质涵盖 PEEK、POM、PTFE 及增强尼龙，可在酸碱、海水、电镀液、有机溶剂等苛刻介质中长期稳定运行。产品具备自润滑、耐磨损、抗疲劳、电绝缘、无磁性等优异特性，且密度低、运行噪音小。广泛应用于医疗器械、半导体湿法设备、食品机械、化工泵阀、海洋仪器、精密流量计等领域。球体可选玻璃球、陶瓷球、塑料球；保持架可匹配 PEEK、TORLON、PHENOLIC 等高端工程塑料。我们可根据客户图纸或工况需求，定制不同尺寸、精度等级及密封形式的工程塑料轴承。
High-end plastic bearings are our specialty solution for corrosive, lubrication-free, lightweight and non-magnetic applications. Materials include PEEK, POM, PTFE and reinforced nylon, delivering long-term stability in acids, alkalis, seawater, plating solutions and organic solvents. They offer self-lubrication, wear resistance, fatigue resistance, electrical insulation and non-magnetic performance, with low density and quiet operation. Widely used in medical devices, semiconductor wet process equipment, food machinery, chemical pumps and valves, marine instruments, and precision flow meters. Balls can be glass, ceramic or plastic; cages can be PEEK, TORLON, PHENOLIC and other high-performance engineering plastics. We customize sizes, precision grades and sealing configurations according to customer drawings or operating conditions.

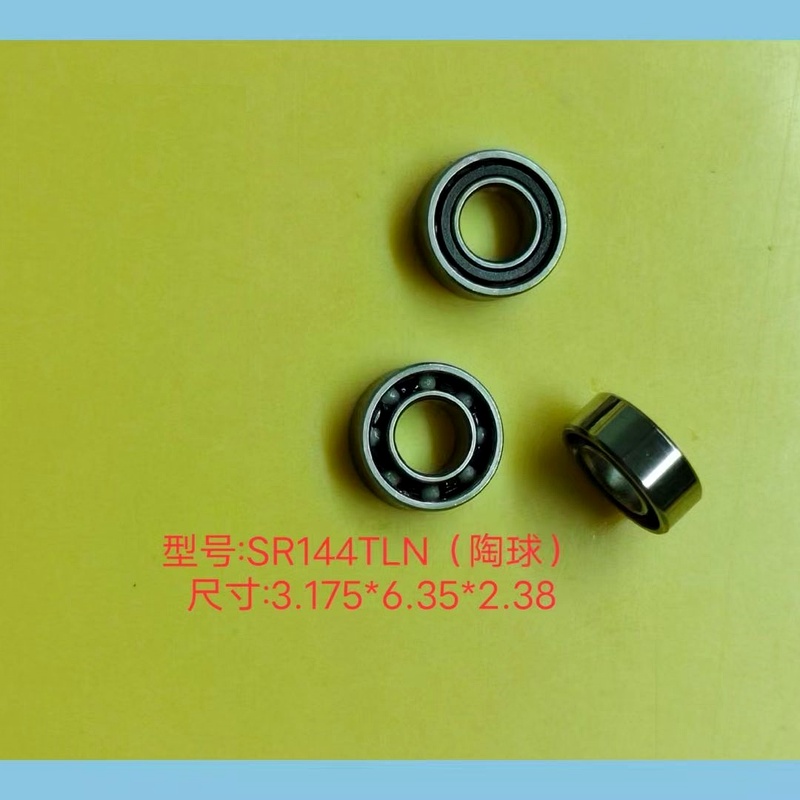

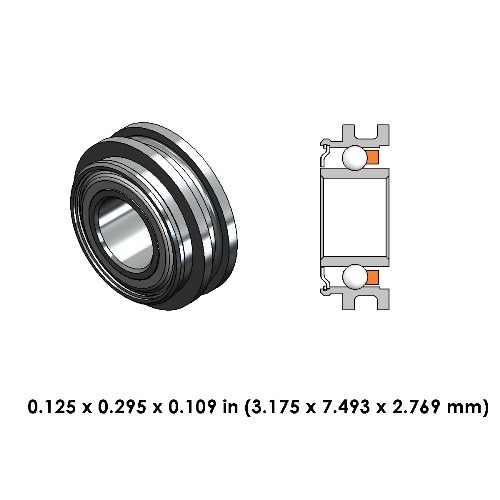

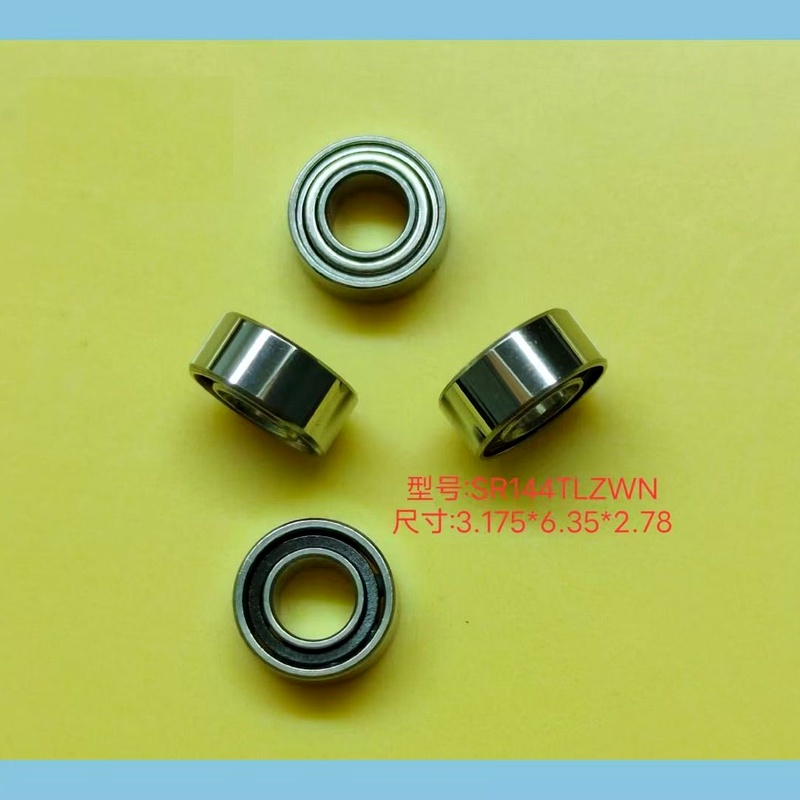

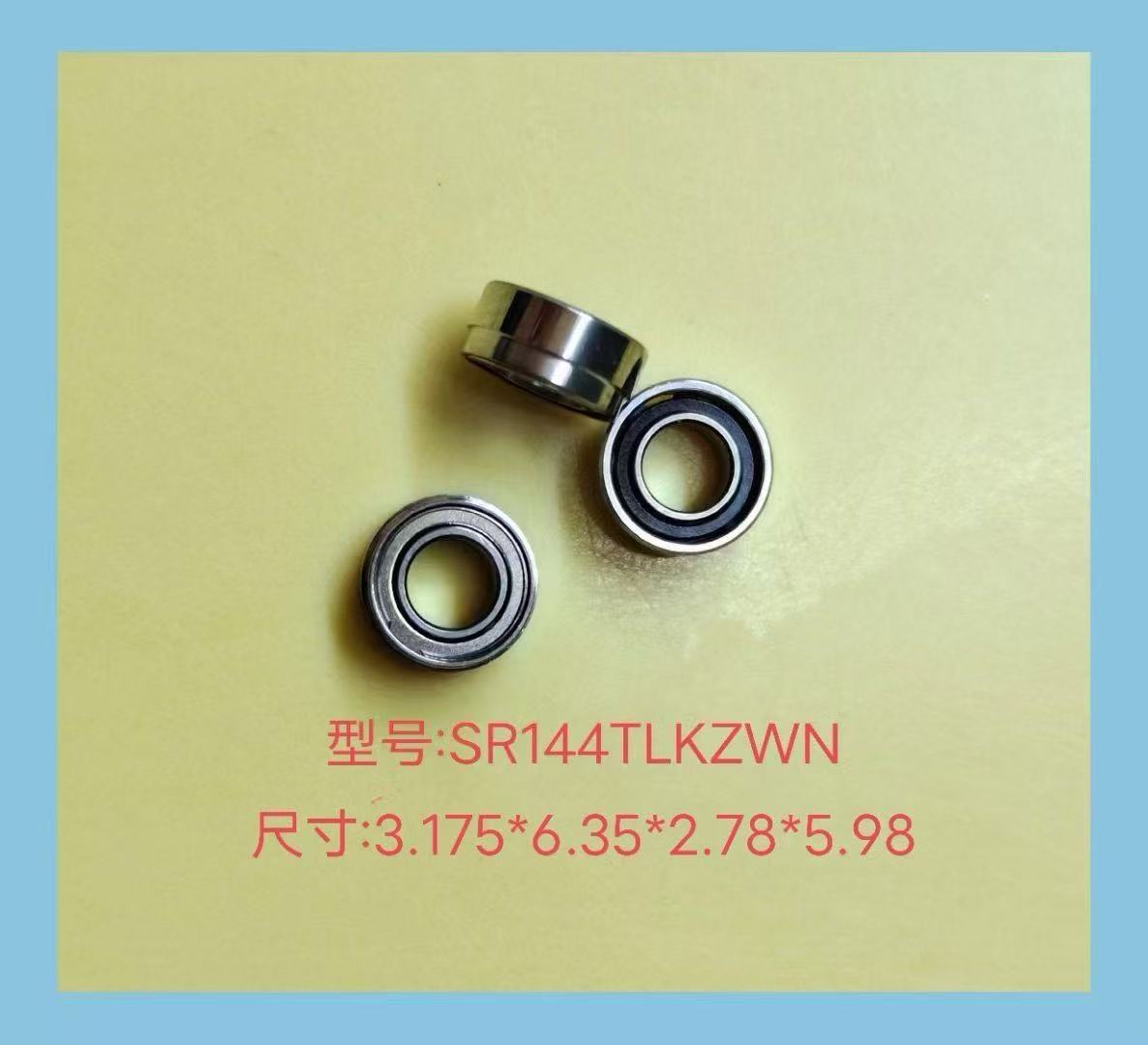

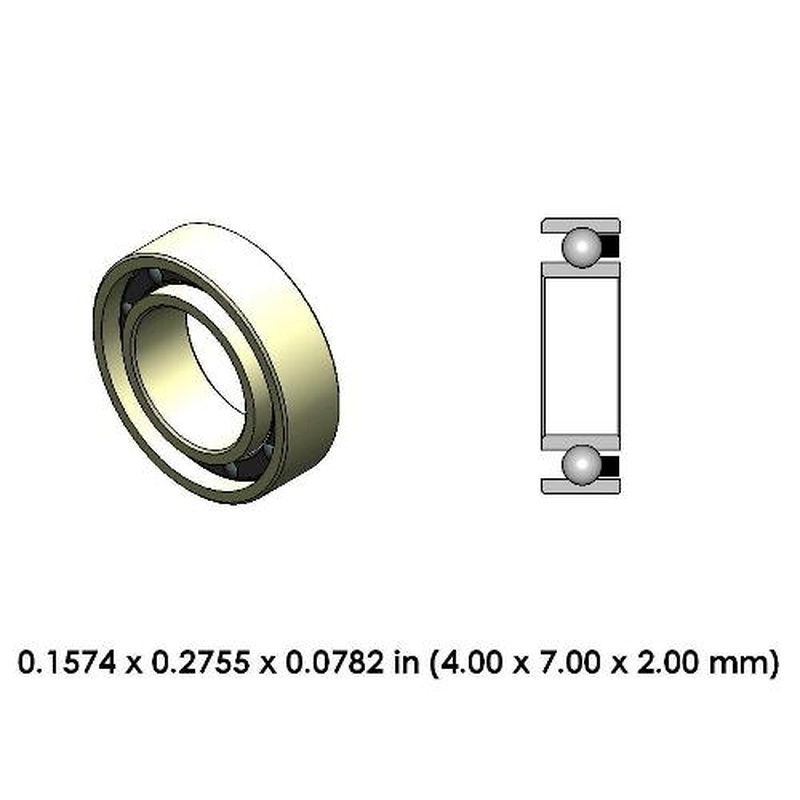

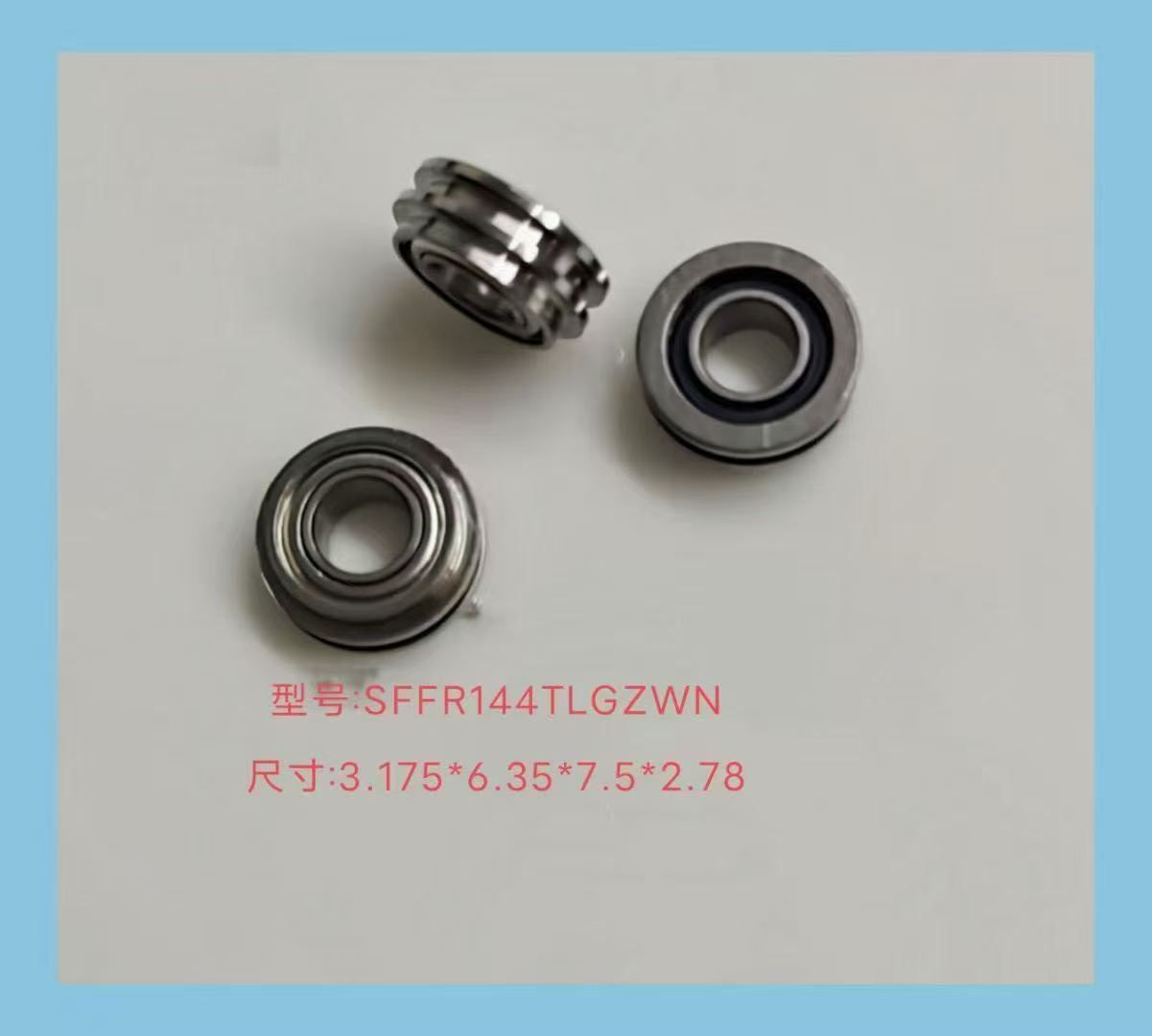

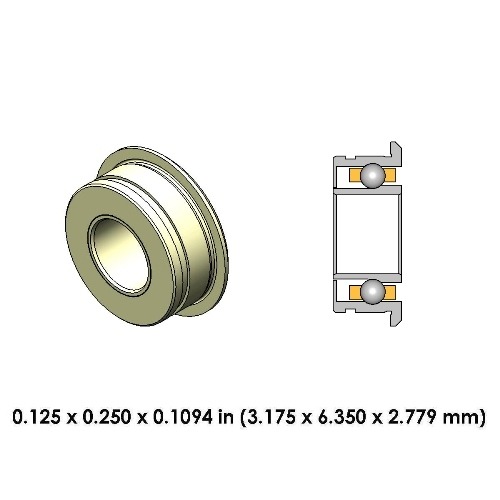

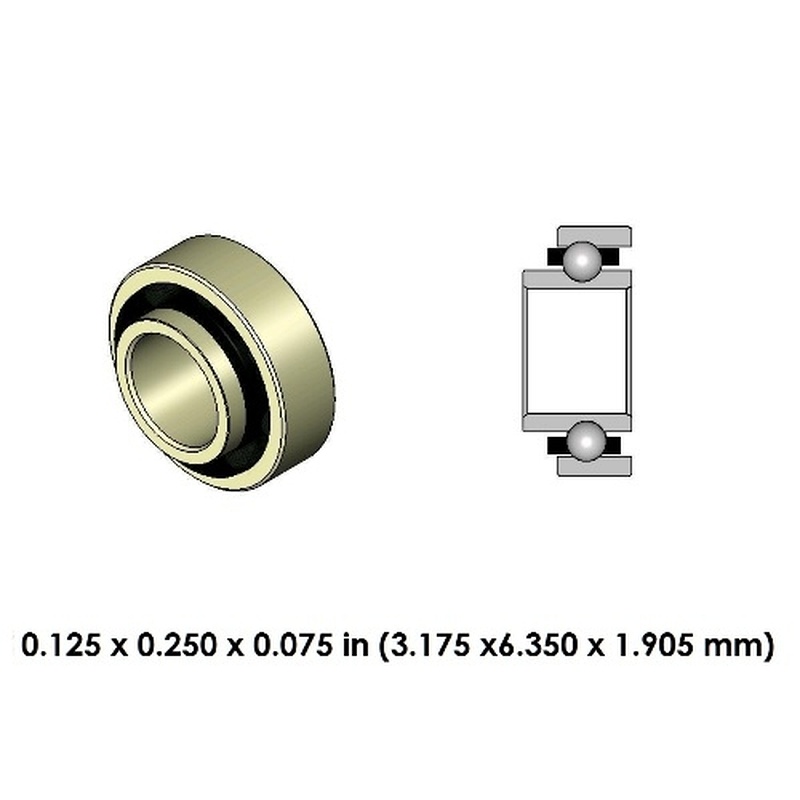

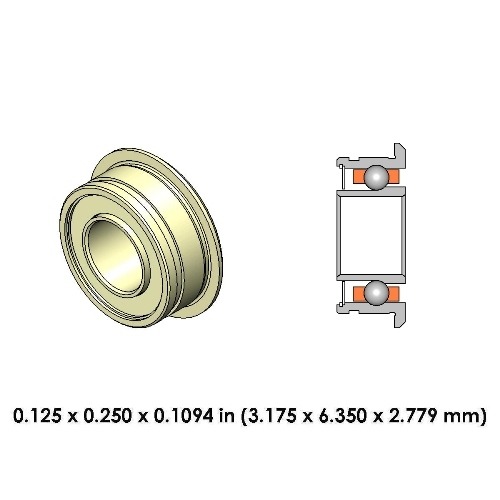

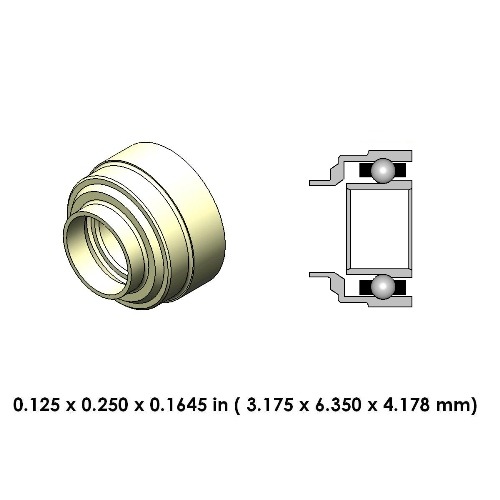

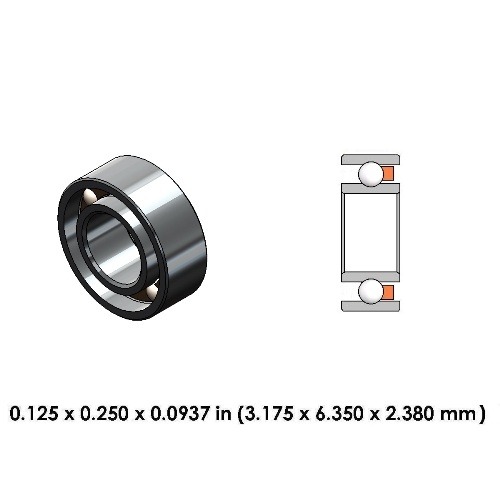

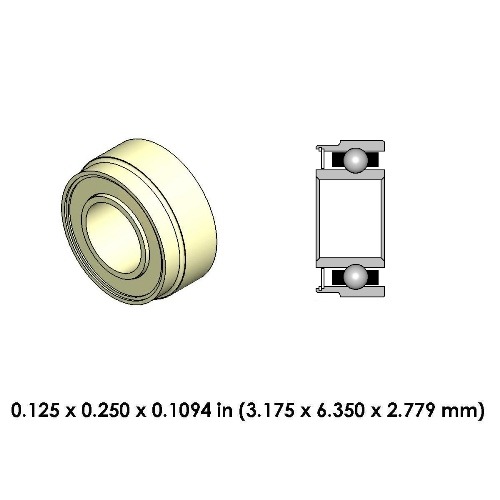

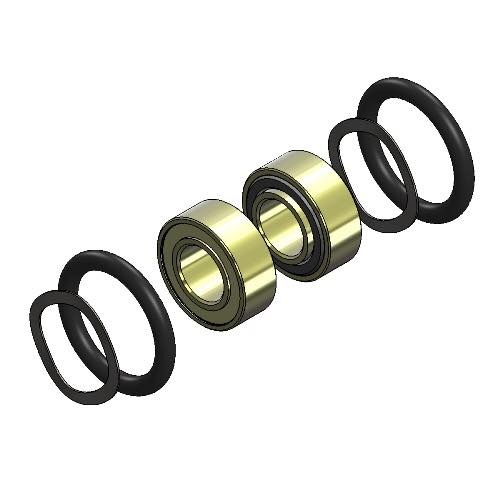

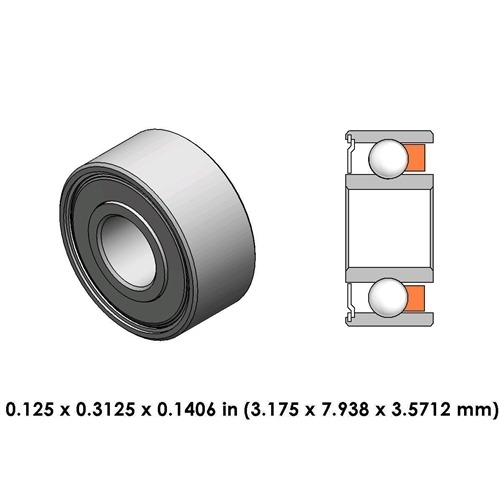

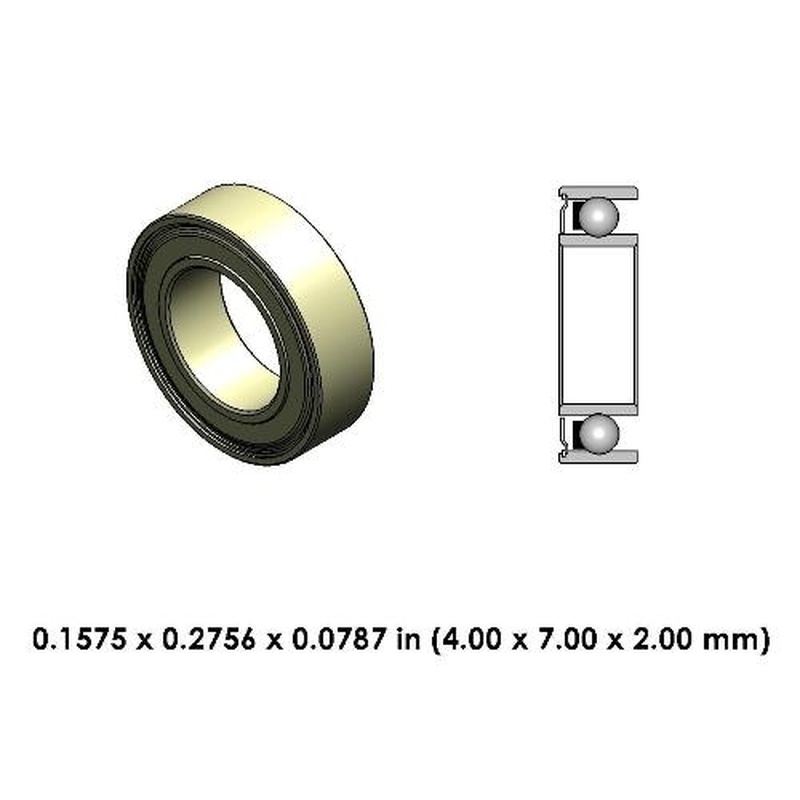

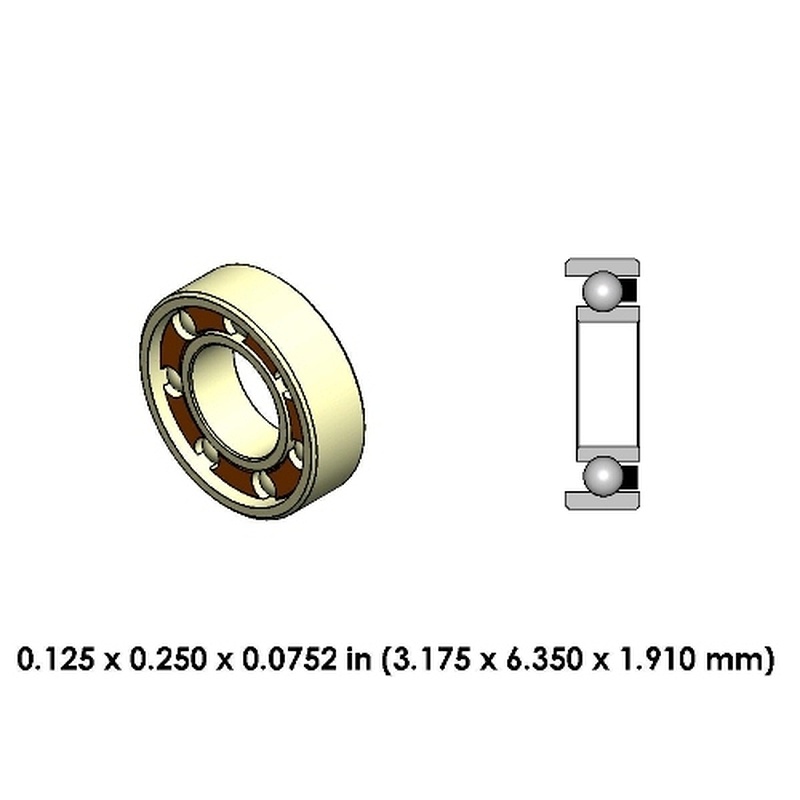

专为 Kavo / W&H / Star / MidWest 等主流牙科手机涡轮设计 · 不锈钢套圈 + 陶瓷球 · 行业标准 30万转/分钟，我公司高速牙具轴承可达 40–45万转/分钟
Designed for Kavo / W&H / Star / MidWest high-speed turbines · SS rings + ceramic balls · Industry standard 300,000 rpm; our high-speed dental bearings reach 400,000–450,000 rpm
牙科手机涡轮轴承行业标准转速约 30万转/分钟（300,000 rpm），而我公司高速牙具轴承可达 40–45万转/分钟（400,000–450,000 rpm），同时经受反复高温高压消毒、耐磨且无颗粒脱落，是微型轴承中最严苛的细分应用之一。本公司长期为 Kavo、W&H、Star、MidWest 等主流牙科手机品牌提供配套微型轴承，材质涵盖不锈钢与陶瓷球，保持架可选 Torlon / Phenolic / Polyimide 等进口高端尼龙材料，确保超高速运转下的稳定性与超长寿命。
While the dental handpiece industry standard is about 300,000 rpm, our high-speed dental bearings reach 400,000–450,000 rpm, withstand repeated high-temperature autoclaving, offer wear resistance without particle shedding — among the most demanding miniature bearing applications. We supply handpiece bearings for Kavo, W&H, Star, MidWest and other leading brands, in stainless steel with ceramic balls, with Torlon / Phenolic / Polyimide premium imported nylon cages for stability and ultra-long life at extreme speeds.
| 材质 | Material | 特性 | Feature | 典型应用 | Applications |
|---|---|---|---|---|---|
| Torlon (PAI) | Torlon | 强度最高、耐高温 | Highest strength, heat-resistant | 高负载超高速 | Heavy-load ultra-high-speed |
| 酚醛树脂 Phenolic | Phenolic | 耐高温、自润滑、低噪音 | Heat-resistant, self-lubricating, low-noise | 高速牙科手机、低噪场景 | High-speed handpieces, low-noise |
| 聚酰亚胺 Polyimide | Polyimide | 耐辐照、耐极端温度 | Radiation-resistant, extreme temps | 特种工况、长寿命 | Special conditions, long life |
